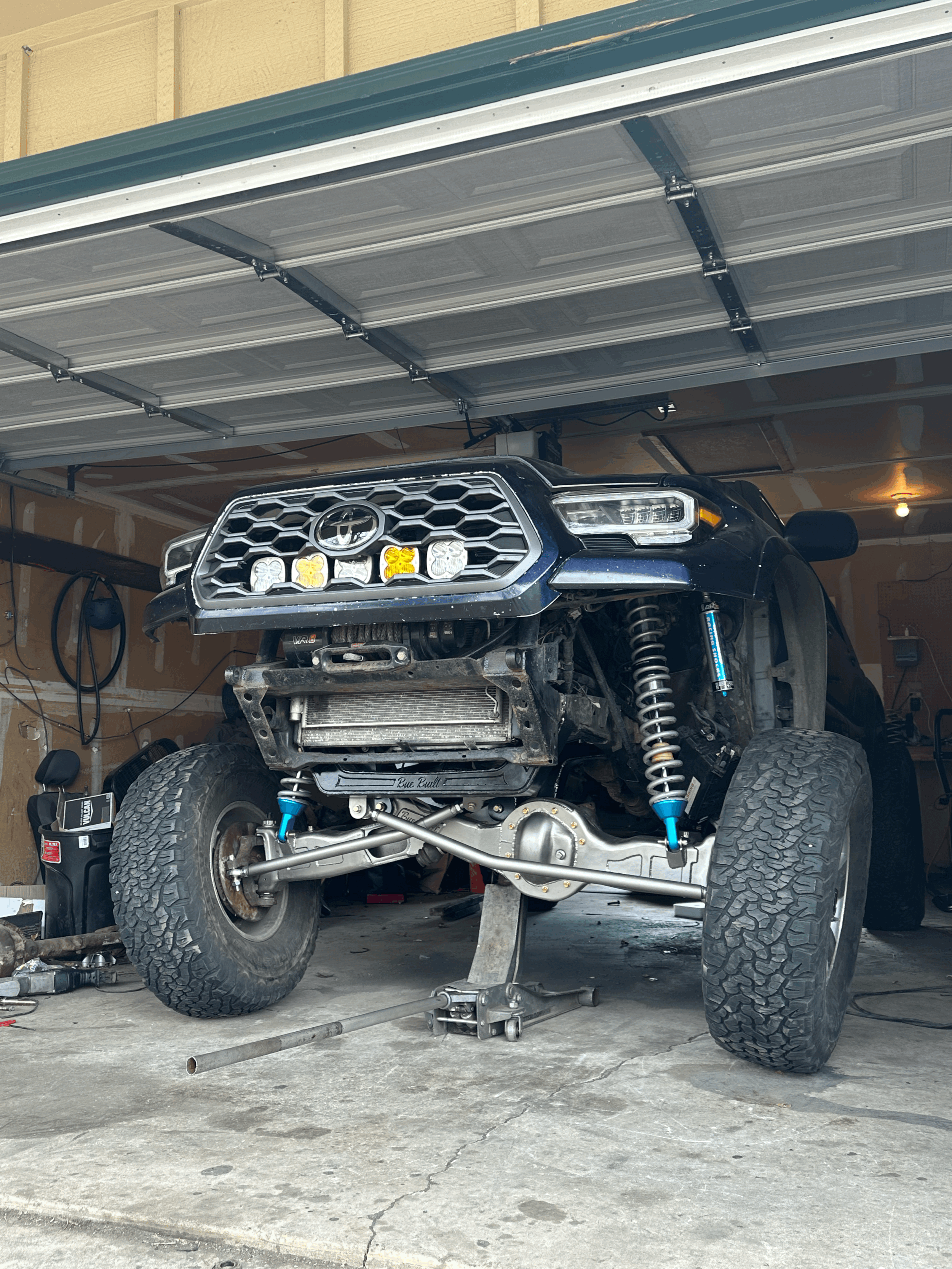

This is a weld-it-yourself kit that will allow you to bolt up a set of Dana 44 Twin Traction Beams to your 2003-2024 4Runner and 2005-2023 Tacoma. This kit replaces your factory a-arm front crossmembers with two new crossmembers and mounts specifically designed to mount twin traction beams. This kit comes in individual pieces and it is up to a qualified fabricator to put it together. Significant cutting and welding is required. This kit will cycle between 18-20 inches of clean 4×4 travel with +4” beams.
Note: a 4×4 engine oil pan may be required to fit the TTB crossmembers.
What’s Included:
· Everything needed to mount the beams to the frame (Front and rear crossmembers, driver and passenger beam mounts)
· Radius arm kit (everything needed to make complete radius arms and mount them)
· Complete dual swingset steering system (Designed to be used with a 1986-1995 Toyota 4runner or pickup steering box)
· 1.5”x 0.25” 4130 tube for the steering links
· Delrin bushings/sleeves for the steering swingers
· 8x Barnes 4×4 3 piece chromoly 7/8 heims, 8x weld in tube bungs, 8x misalignment spacers, 2x jam nuts
· 2x Barnes 4×4 3 piece chromoly1 ¼ heims, 2x weld in tube bungs, 2x misalignment spacers, 2x jam nuts
· 2× 1” FK uniballs
· 6× 3/4” 12 point grade 9 bolts
· 8× 5/8” 12 point grade 9 bolts
· Lower coilover mounts
What else is needed:
· A set of Dana 44 twin traction beams (approx $300)
· A 1986-1995 Toyota 4runner or pickup steering box (approx $50)
· Steering linkage from the steering box to the steering wheel (approx $100)
· whatever pitman arm you choose
· 14” coilovers
· Upper shock towers (there isn’t a one size fits all solution to this due to the vastly different style of vehicles this swap is applicable to. It could be as simple as a tube shock hoop, or an entire engine cage).
Kits are made to order so please allow up to 4 weeks to ship.
PLEASE NOTE: This is a high-performance off-road suspension kit. By purchasing, the buyer assumes all risk and responsibility. This product is not designed for street use and may not be legal in your area. Use at your own risk. BueBuilt is not liable for any damages, injuries, or legal issues that may result from its installation or use.
